    Three way fan/light diagram

    I need a schematic (drawing) of the following:

    Two ceiling fan/lights in the same room both controlled by the same switch/s I'll need to have two switches one at either entrance to the room. I want the switch to control the lights and use the pull chain to turn the fan/s on and off. Both fans will be between the two switches.

    Thanks in advance
    Little about a lot and a lot about a little.
    Every day is a learning day.
  • HayZee518
    Deity
    • Jul 2004
    • 8747

    #2
    fan/light combo

    before I get into a diagram, do you want the fan motors hot all the time with just the lights switched -or- do you wish the fans and lights to be switched together?

    Comment

    • pushkins
      General Contractor
      • Mar 2006
      • 1895

      #3
      Fans motors always hot so they can be turned on or off by the pull chain and the lights on the three way switch...please
      Little about a lot and a lot about a little.
      Every day is a learning day.

      Comment

      • HayZee518
        Deity
        • Jul 2004
        • 8747

        #4

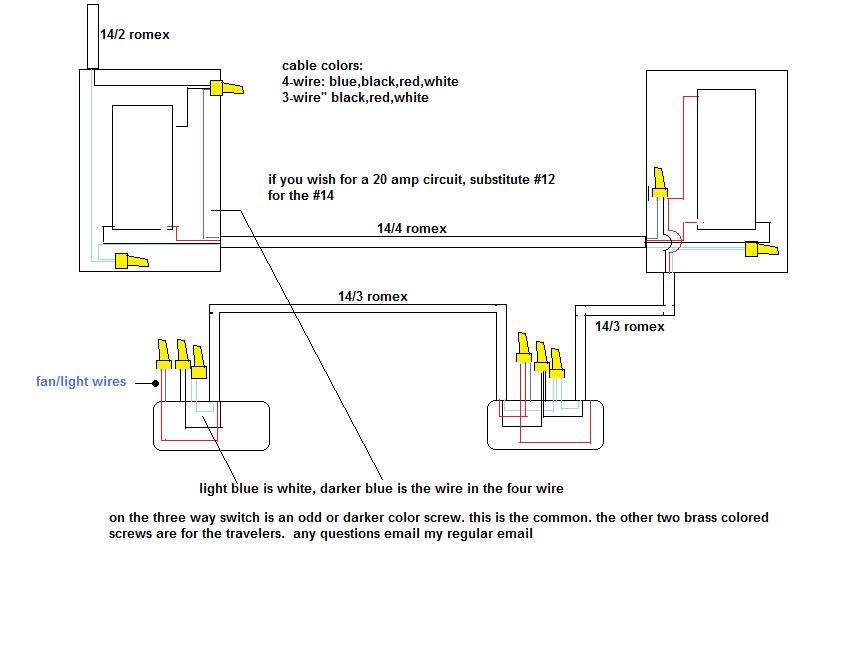

        fan-light diagram

        ok, here's the diagram. go to your electrical jobber and get a length of 14 or 12/4 romex cable. 14 if you're fusing for 15 amp or 12 if you're going with 20 amp circuit.
        you'll have one extra color in the cable, blue I think.
        I'm using the red off the remote#2 common screw as the switch leg for the lights and the darker blue for the hot to the fan motors.Click image for larger version

Name:	fan-lite.jpg
Views:	1
Size:	53.8 KB
ID:	87174

        Comment

        • pushkins
          General Contractor
          • Mar 2006
          • 1895

          #5
          Thanks mate, perfect.
