    Hooking up dryer outlet for existing 3 prong

    Click image for larger version

Name:	coop.jpg
Views:	1
Size:	150.2 KB

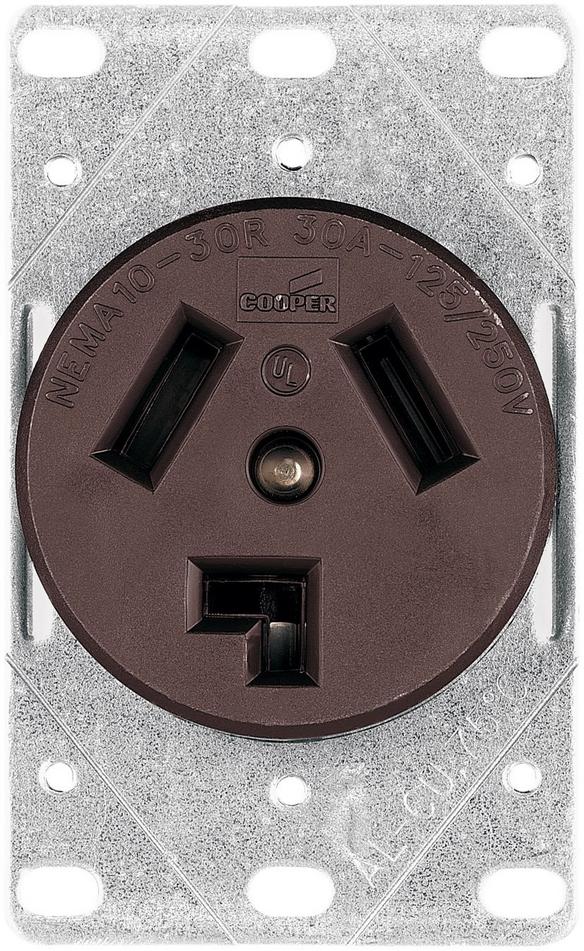

ID:	87841Im replacing my dryer outlet, older house (1950's), 3 prong, has three wires red white and black, should there be a ground as well?
    Last edited by jesse29; 01-28-2014, 03:44 PM.
  • HayZee518
    Deity
    • Jul 2004
    • 8747

    #2
    dryer

    there should be a bare ground wire in the romex cable. red and black go to the outside terminals, bare goes on the L shaped terminal and the white goes opposite this terminal.

    Comment

    • Speedy Petey
      Apprentice
      • Nov 2006
      • 214

      #3
      The "L" shaped terminal of this receptacle is the NEUTRAL. The white connects to this, NOT the ground.
      Older 3-wire dryer receptacles omitted the ground (the neutral served both purposes). If a ground is present connect it to the box (if metal) or just fold it back in the box (if plastic).
