30-50/250 receptacle wiring without a neutral wire for TIG welder.

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • 30-50/250 receptacle wiring without a neutral wire for TIG welder.

    I am running a 40A, 220v circuit for my TIG weld in the garage.

    I pulled a permit and was putting together a shopping list but I am stuck at the receptacle and how it is wired.

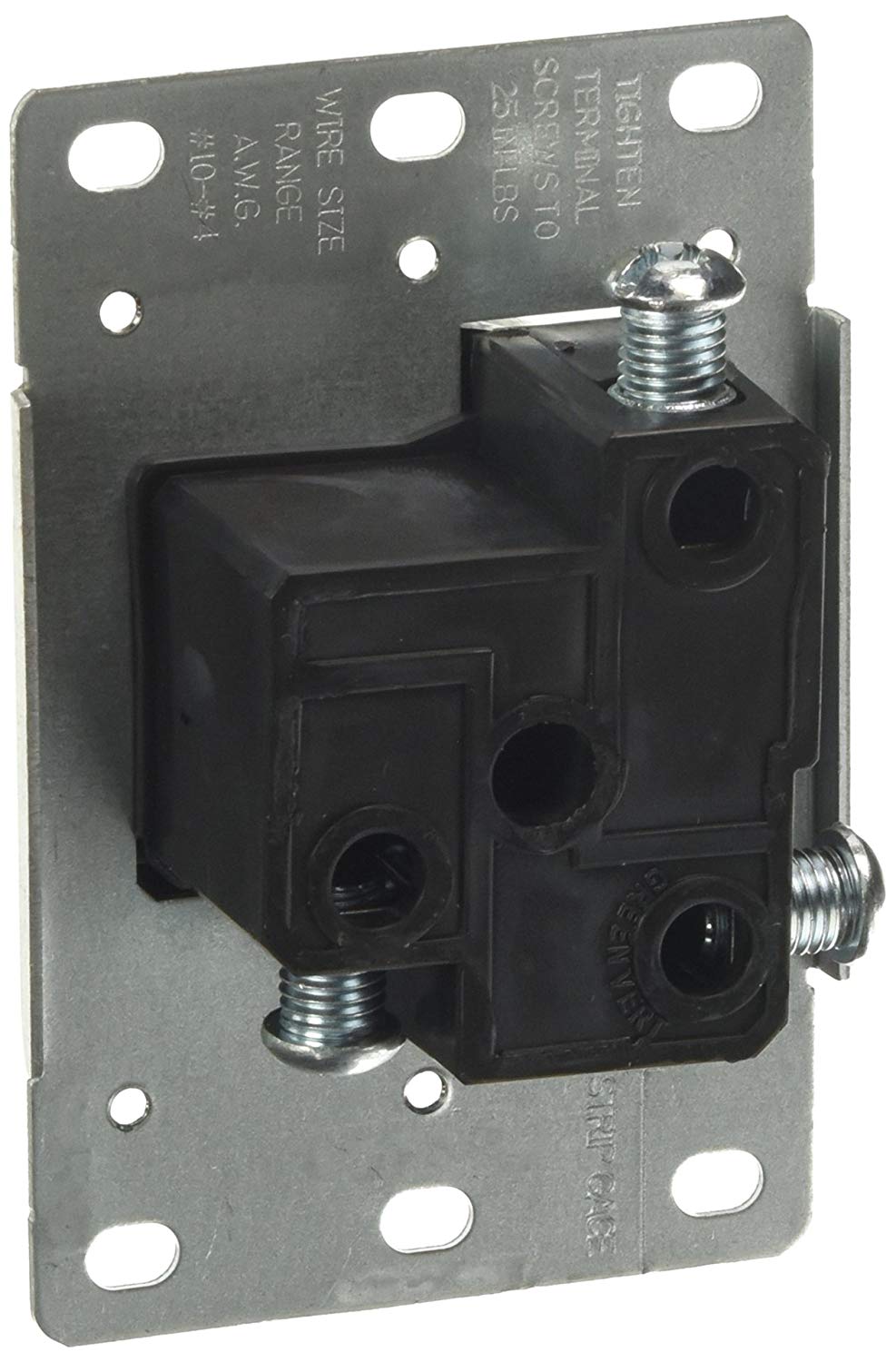

    I found (2) receptacles that only have (3) lugs two for HOT and one for the ground. NO NEUTRAL.

    I expected to find (4) lugs, red, black for HOT , white for neutral and green for ground. The following images are wired that way. Should I find a receptacle with the 4 lugs and run 8-3 romex or just run 8-2 romex.

    I don't want to cheap out or wire anything to save a buck....thanks in advance.
    Click image for larger version

Name:	outlet1.jpg
Views:	1
Size:	70.7 KB
ID:	88046Click image for larger version

Name:	LEVMFCE24442_WB_1_PE_001.jpg
Views:	1
Size:	24.1 KB
ID:	88045Click image for larger version

Name:	outlet3.jpg
Views:	1
Size:	122.1 KB
ID:	88047
    It\'s sometimes better to be lucky than smart.

  • #2
    I am always answering my own posts here. 240v doesnt require a neutral, two hot and a bare ground. Thats it.
    It\'s sometimes better to be lucky than smart.
