  • 8 ft. fluorescent fixture

    I have an older 8 ft. 3 tube(single pin) fluorescent light fixture with 2 ballasts, one ballast operates the two outside bulbs and one operates the middle bulb but only the middle bulb is working. Each ballast has a red and blue wire coming out from one side of the ballast close together and the other side has a black and white wire coming out close together. What I need is a wiring diagram showing how this light should be wired, if anybody knows how it should be wired could you please post a diagram for me....Thank You.

  • #2
    three tube ballast

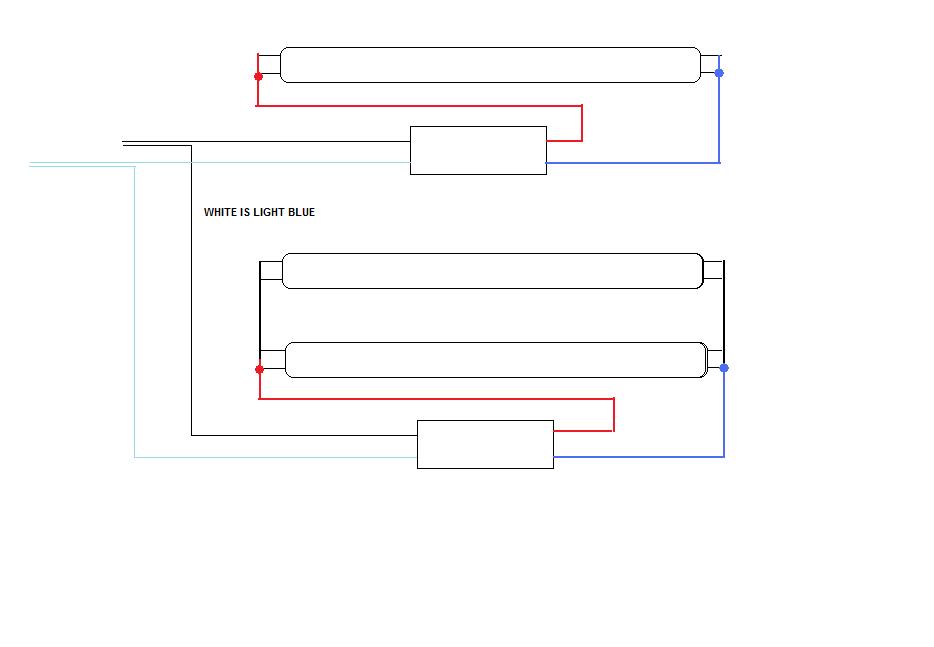

    the following diagram should help.
    each tombstone has four wire connections, two on one side two on the other. quick wire connections. use solid insulated #18 wire.
    Click image for larger version

Name:	ballast.jpg
Views:	1
Size:	26.9 KB
ID:	87219


    • #3
      flourescent sockets

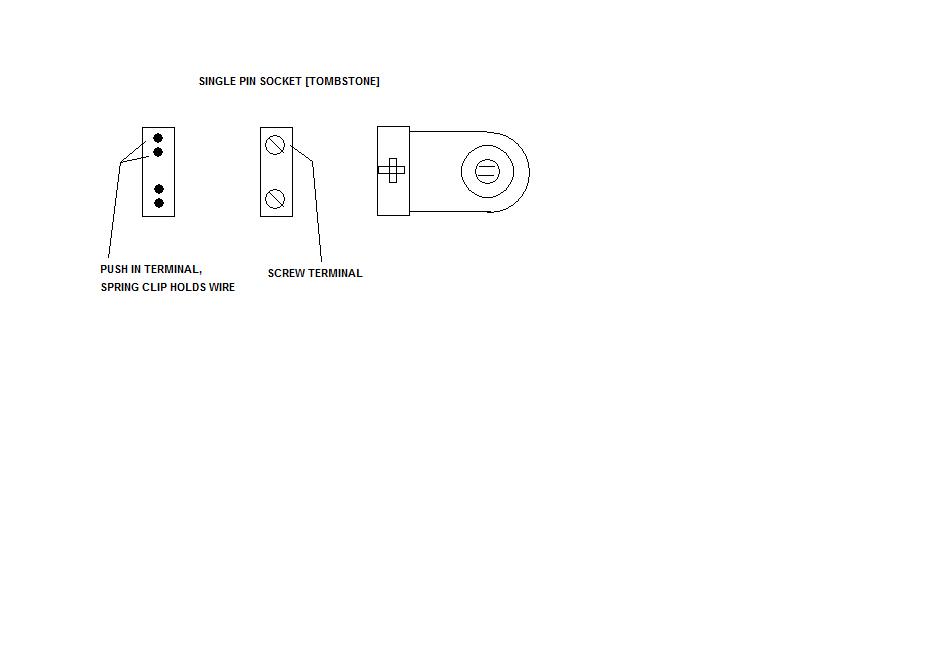

      sockets are either bi-pin or single pin. high output sockets have a plastic horizontal locator between the tube pins

      the wires push in or use a screw terminal that can accomodate two wires under each screw head.

      a number 18 gauge solid insulated wire is usually used. printed or heat embossed into or on the plastic jacket is the voltage rating - 600 volts or less.Click image for larger version

Name:	tombstone.jpg
Views:	1
Size:	21.4 KB
ID:	87220
