    Fan relays

    I have a bad fan relay. The number on it is BC-1526-AA. I have a new relay but the number on it is BC-7070-A/M. They look identical otherwise. Do you think it is possible to replace this new one with the old one? I have a Heil 80% furnace. The Model number is NUGK075DG07.
    Tags: None
    • Speedbump
      Apprentice

      • Aug 2010
      • 293
      #2
      The important thing is that the coil voltage is the same on both of them and that the relay is able to handle the amperage of the motor.

        Comment

        • KDGrayson
          New Member

          • Nov 2013
          • 19
          #3

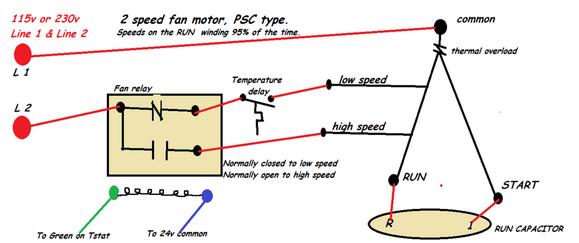

          Click image for larger version Name: 2u6fdsn.jpg Views: 2 Size: 20.9 KB ID: 87327This is a fan relay, they are all the same as far as residential goes.

            Comment
